STAR ST-3600 4K CCTV & IP Camera Tester | HD-Coax, PoE, RJ45 TDR Cable Tester, PTZ Control & Network Diagnostic Tool for Security Installations

The STAR ST-3600 is a professional Android-based 5.4" IPS CCTV & Network Tester, built for Indian security professionals. Supporting 4K IP, 8MP HD-Coax (TVI/CVI/AHD), and analog camera testing, it features built-in PoE (48V/25.5W), DC outputs, HDMI/VGA inputs, and RJ45 TDR cable fault detection. Ideal for CCTV installation, troubleshooting, PTZ control, and network diagnostics, it delivers sharp image previews even in sunlight. With batch activation for Hikvision/Dahua cameras, cable certification, live screen sharing, and tender-ready reports, the ST-3600 reduces setup time, increases accuracy, and ensures zero downtime. Lightweight, rugged, and weather-ready, it’s the ultimate all-in-one tool for Indian CCTV technicians.

Key Features for Indian Installers

1. Display & Video Testing

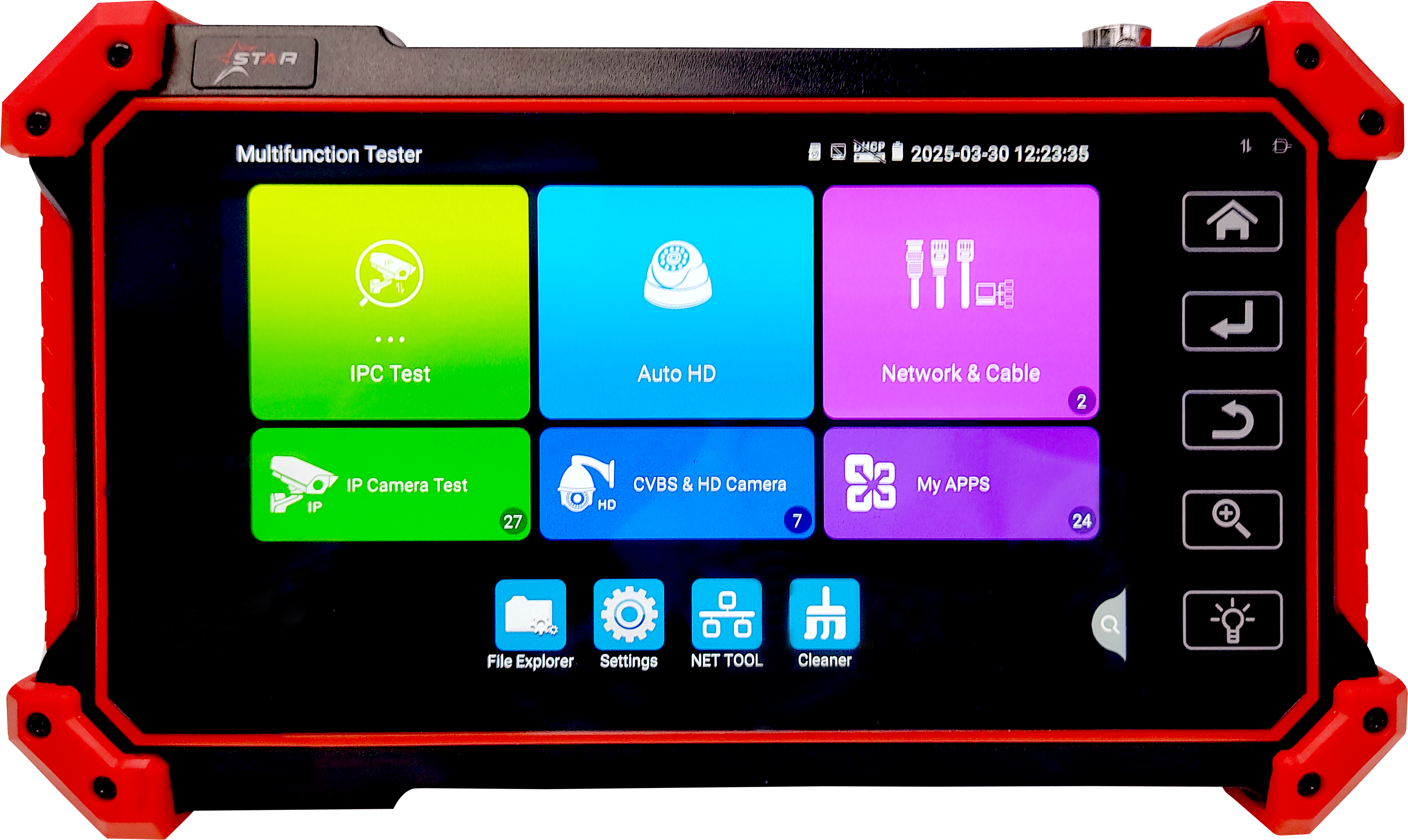

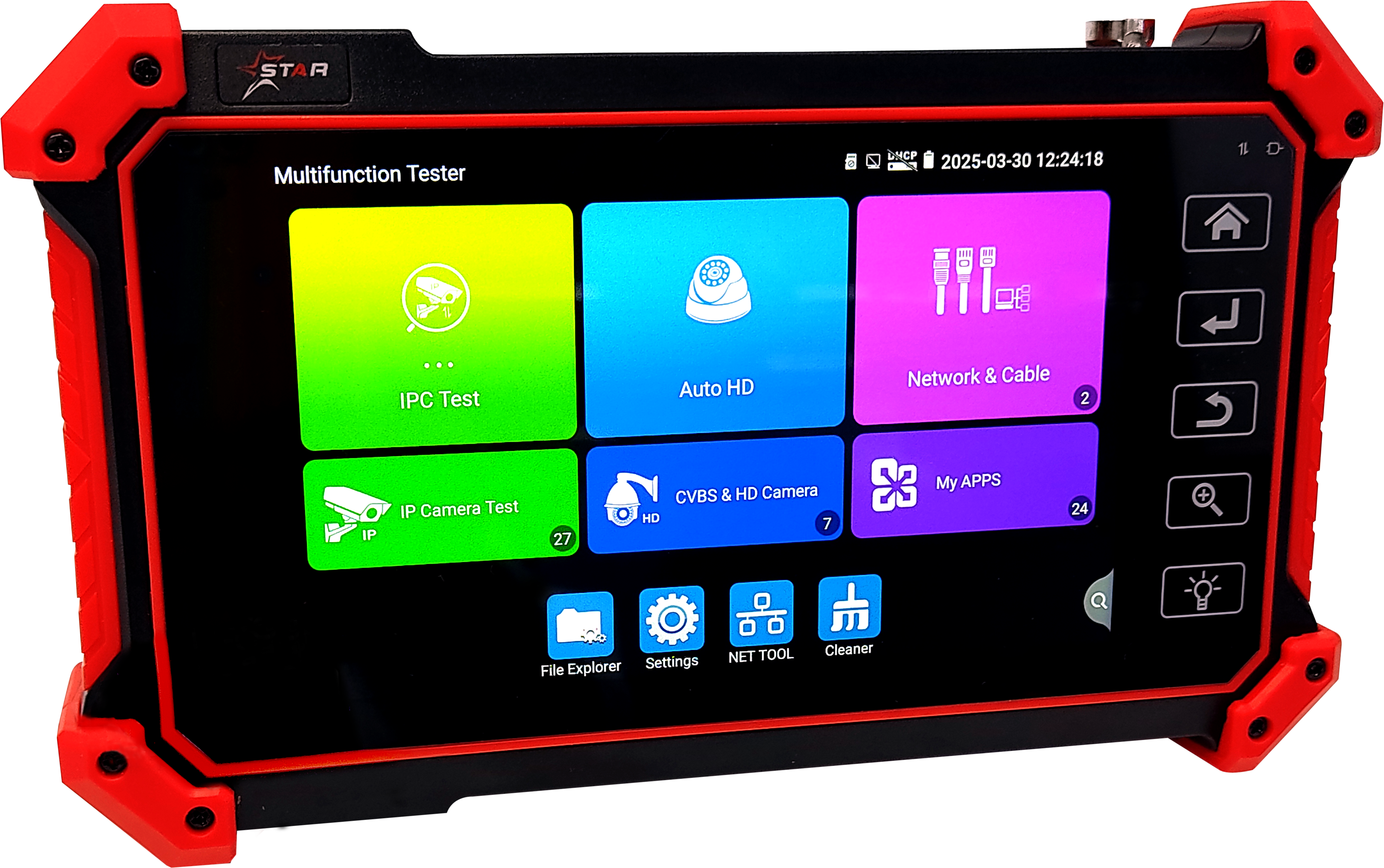

   • 5.4″ IPS Touchscreen (1920×1152 resolution) for sharp image previews even in sunlight.

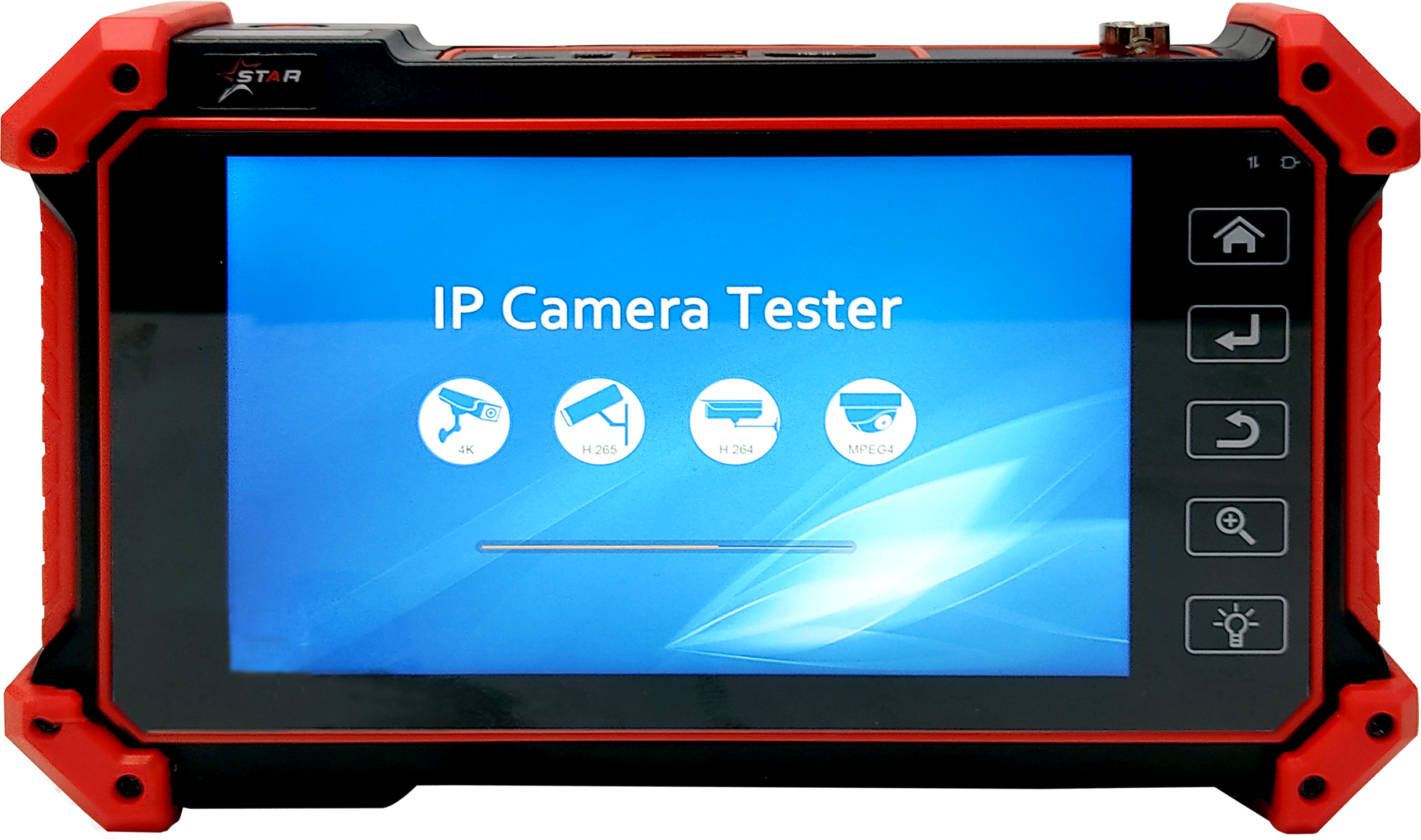

   • 4K IP camera playback (H.265 / H.264) with RTSP & ONVIF support.
   • HDMI input (4K@30fps) & VGA input (2048×1152@60fps) to test DVR/NVR output.
2. Camera Compatibility & PTZ Control
   • Works with IP, CVBS, TVI, CVI, AHD — up to 8MP/4K resolution.
   • Auto-detect HD-Coax formats for faster setup.
   • PTZ control via coax or RS485 — supports Pelco-D/P, Hikvision, Dahua, and other protocols.
   • Batch activation for Hikvision/Dahua — saves hours on multi-camera jobs.
3. Power & Connectivity for Indian Sites
   • Built-in PoE Output (48V, 25.5W) to power IP cameras directly — no extra injector needed.
   • DC 12V/3A output for analog cameras.
   • Wi-Fi hotspot creation for mobile access, USB & SD card storage, Android app support.
4. Network & Cable Testing
   • RJ45 TDR Cable Tester — measures length, attenuation, impedance, skew, and locates faults (up to ~180m).
   • Network tools: IP scan, ping, traceroute, DHCP server, port flash, traffic monitor.
   • Cable certification to ensure zero downtime after handover.
5. Reporting & Utilities
   • Generates camera & cable test reports — ideal for tender submissions and client handovers.
   • Tester Play: live screen mirroring to Android phones or PCs — helpful for training junior staff on-site.
   • Snapshot, video record, audio test, voltage/power display.
6. Physical & Power Specs
   • Weight: ~0.8 kg; Size: 183×110×36.5 mm — lightweight for long field jobs.
   • Battery: 7.4V / 3350 mAh — 5 hours runtime, 3–4 hours fast charge.
   • Operating temp: −10°C to +50°C — ready for India’s heat and monsoon conditions.

Why Indian Technicians Choose the ST-3600

✅ One device replaces 7–8 tools — no more carrying multiple testers.
✅ Cuts installation time by up to 50% with batch camera activation & PoE power.
✅ Tender-ready reports for professional handover.
✅ Built to handle India’s outdoor climate.
