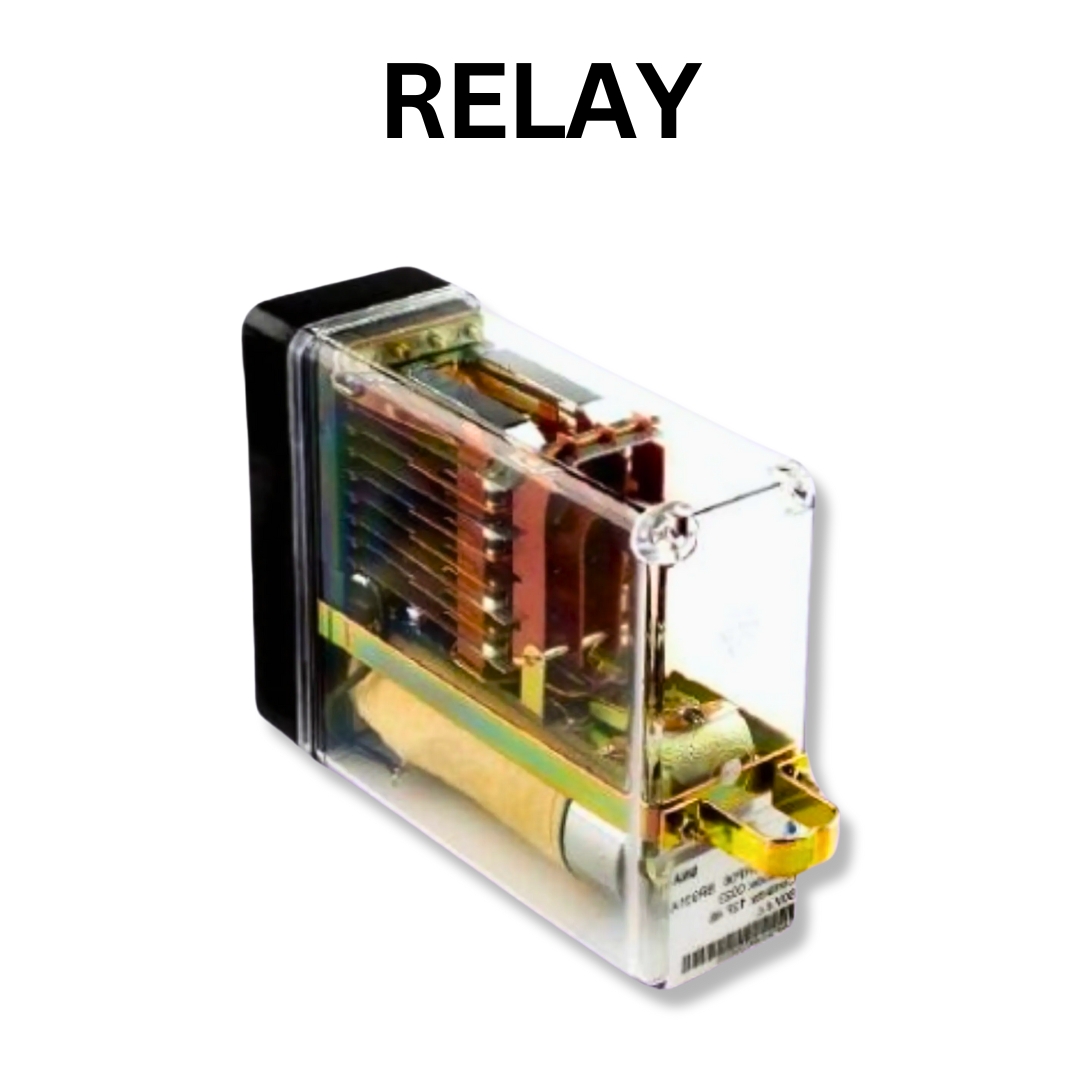

QN1 Type DC Neutral Q-Series Relay

The QN1 Type Relay is a DC neutral, tractive armature relay designed for railway signaling applications. It plays a crucial role in fail-safe operations, ensuring accurate and reliable performance in railway interlocking and control circuits. Built to RDSO and BRS-930 standards, this relay is designed for high durability and long-term stability in railway infrastructure. With multiple contact arrangements (8F/8B), it is suitable for various signaling applications, providing efficient and fail-safe switching in railway automation systems. The plug board, connectors, and retaining clips ensure easy installation and maintenance.

Key Features:

● Non-AC Immunized tractive armature relay designed for railway signaling.

● 8F/8B contact configuration for efficient switching in signaling circuits.

● Operates on 24V DC, ensuring reliable performance.

● Fail-safe design for safety-critical applications.

● Conforms to BRS-930 and RDSO IRS:S46, S-23, S-60 standards.

● Supplied with plugboard, connectors, and retaining clips.

● High mechanical strength and long operational life.

It's Uses:

● Railway signaling and automation systems.

● Interlocking circuits for enhanced safety in train operations.

● Track circuit control to detect train presence.

● Failsafe switching applications in railway networks.
