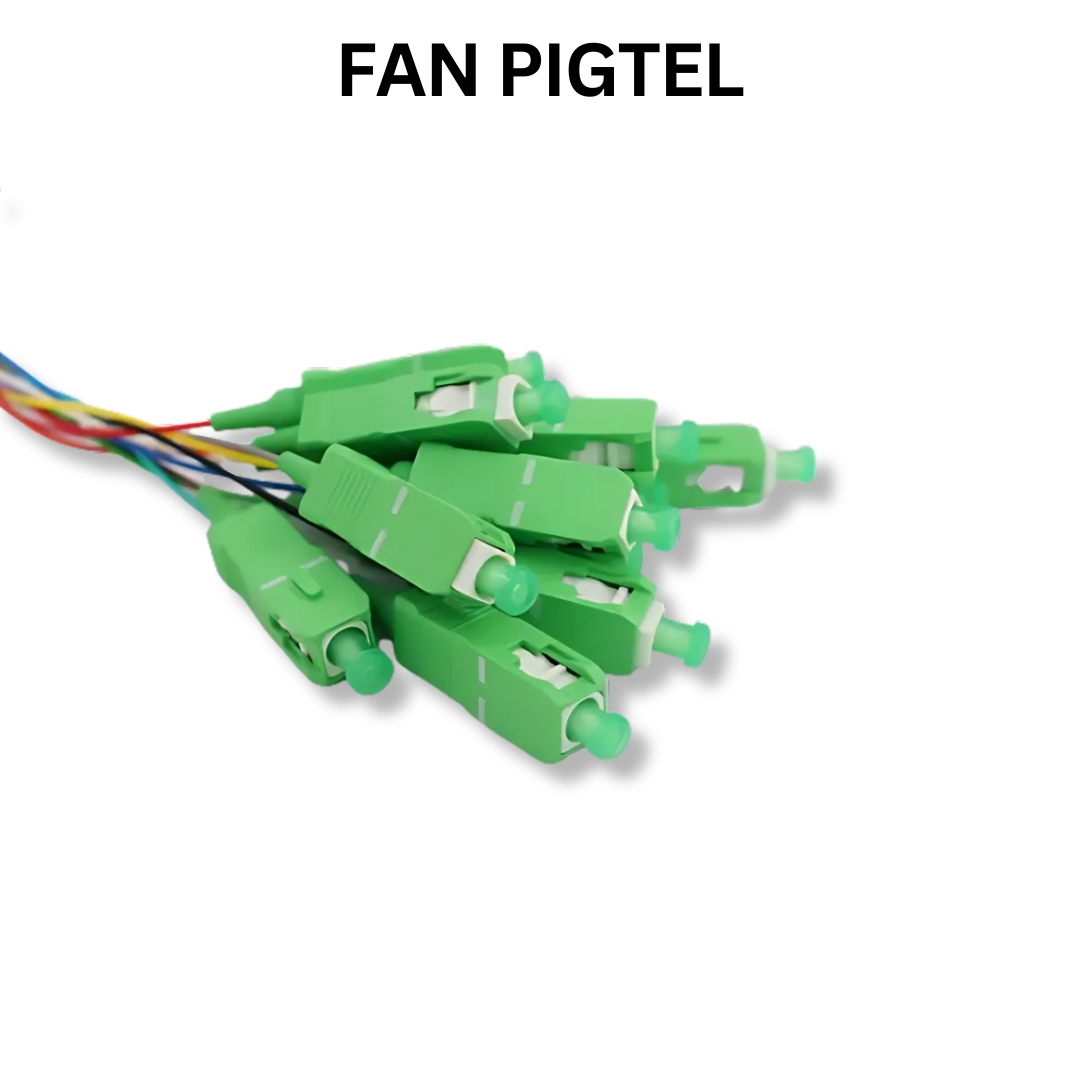

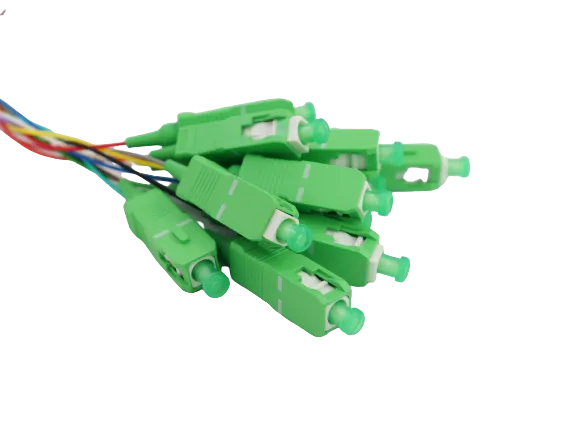

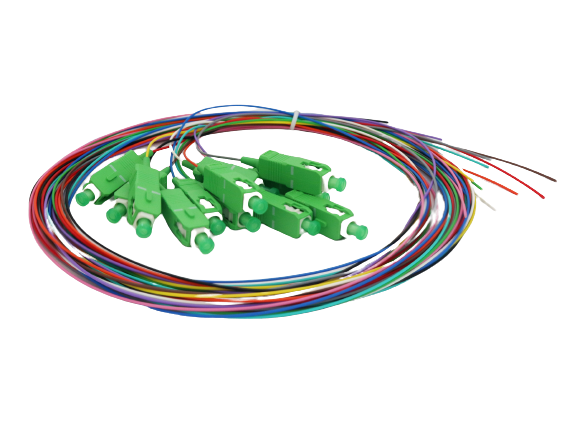

Pigtel SC/APC 1Pc

Specifications

• Fiber Diameter: - 900um or 2mm or 3mm
• Return Loss (SM only): - -50dB (APC), -65dB (APC)
• Insertion Loss: - < 0.3dB max.
• Durability (500 matings): - < 0.2dB max increase
• Operating Temperature: - -20 ~ +70 degree Celsius
• Fiber Optic Pigtails are basically used to splice the fiber in the cable so that they can be connected to the patch panel or equipment.
• It comprises of a fiber cable terminated with a connector at only one end while the other end will be used for the splicing to cable.
• Pigtails come in many variations for fibers, cables and connectors.
• For fiber, it can be Single mode or Multimode (50um, 62.5um, OM3 etc.)
• there are 900um buffered, 2mm and 3mm jacketed types.
• For connector, to name a few common ones are ST, SC, FC, LC, MTRJ, SMA, E2000 etc.
