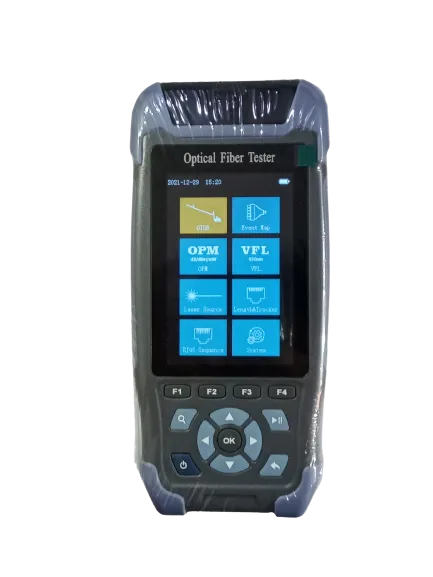

Mini Telesonic OTDR

Specifications

• Wavelength - 1310nm/1550nm±20nm
• Fiber Type - G.652
• Dynamic Range - 24dB/22dB
• Event Blind Zone - 3m
• ATT Blind Zone - 8m
• Test Range - 500m~60km
• Pulse Width - 3ns~10us
• Ranging accuracy - ±1m+ Sampling interval +0.005×Test distance?Loss accuracy ±0.05dB/dB
• Sampling Points - 16k~128k
• Sampling resolution - 0.05m~8m
• Reflection accuracy - ±3dB
• Data Storage - Internal 600 External TF Card
• Laser Safety Level - Class
• File format - SOR Standard file format
• Connector - FC/UPC Interchangeable SC ST


Product

• Display - 3.5 inch Color LCD
• Data Interface - Micro USB
• External storage - TF Card
• Power Supply - Polymer Li-Battery 3.7V 4000mAh - Adapter?5VDC?2A
• Battery Life - Standby 20h Measuring time 12h
• Operating Temperature - -10+50
• Storage Temperature - -40+70
• Relative Humidity - 095 , Non Condensing
• Size - 173mm×82mm×37mm
• Weight - 350g
