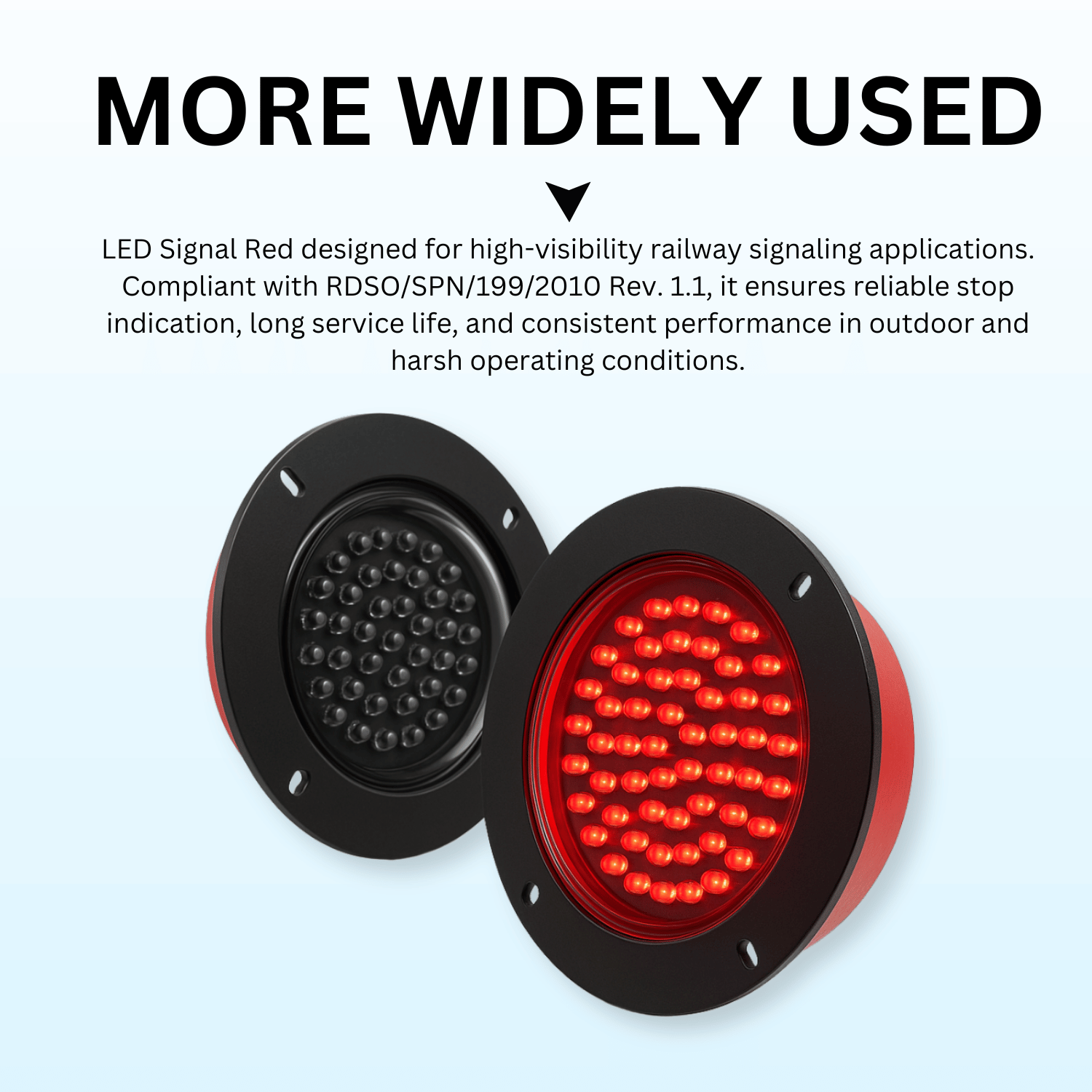

LED SIGNAL Red as per RDSO/SPN/ 199/2010 REV. 1.1

The GAEC LED Signal Red (Main Aspect) meets RDSO/SPN/199/2010 Rev 1.1 standards, offering high-reliability LED technology for Indian Railways. Equipped with a built‑in current regulator, UV‑stabilized lens, and IP65 housing, it delivers guaranteed visibility up to 600 m in daylight. Its fail-safe, phantom‑free, multi‑LED array enhances safety with minimal maintenance and low power consumption. Designed for seamless integration with SSI and relay interlocking systems, this red LED signal is suitable for main, home, and starter signal applications. Ideal for rail network infrastructure, it offers long operational life, energy efficiency, and unwavering performance in harsh environments.

Key Features:

• RDSO/SPN/199/2010 Rev 1.1 main‑aspect approval
• LED array (≥ 60 LEDs) with multi‑array fail-safe design
• Built‑in current regulator, compatible with SSI & relay interlocking
• Phantom‑free, low power draw: 110–150 mA
• UV-stabilized polycarbonate lens, IP65 protection
• High visibility: ≥ 150 Lux at 1.5 m
• Operating range: −10 °C to +70 °C, up to 95% RH
• High dielectric & HV breakdown strength
• Visibility distance: ≥ 600 m in bright conditions

Its Uses:

• Railway main, home, and starter signals
• Route and calling‑on indication
• Trackside signalling for RE, NON‑RE, Metro & Mono‑rail
• SSI and relay interlocked signalling systems
