Fibershot Pro-T45 PON OTDR: Singlemode 1310nm 45dB, 1550nm 43dB, 1625nm 43dB | Built-in OPM, OLS, VFL, FLM, EFD|Triple Wavelength Fiber Optic Tester| 7'' Touch Screen| SC/PC, FC/PC, ST/PC Connectors

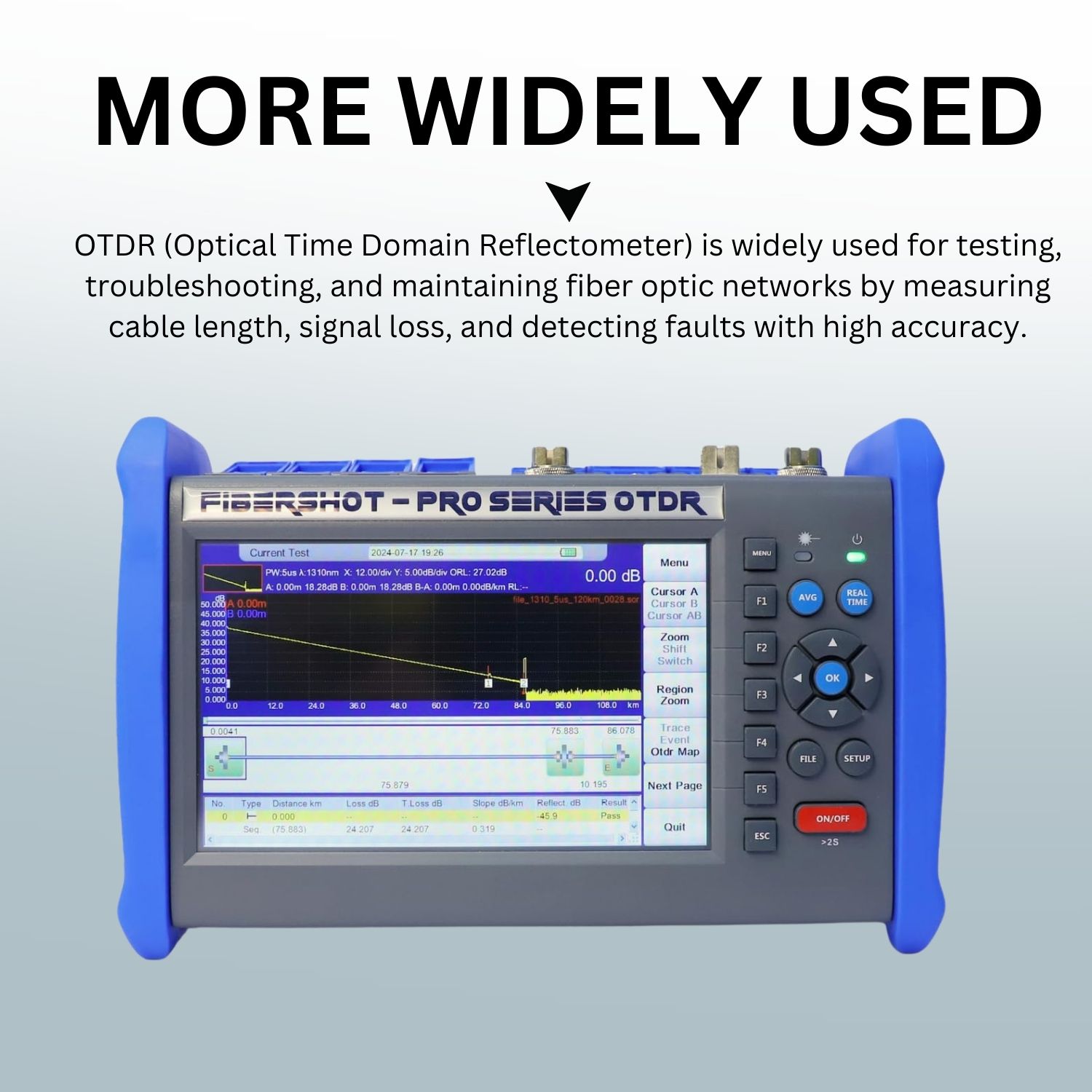

The Fibershot Pro-T45 PON OTDR is a Triple Wavelength Fiber Optic Tester designed for advanced fiber network analysis and troubleshooting. It offers 1310nm (45dB), 1550nm (43dB), and 1625nm (43dB) wavelengths, ensuring precise fiber link identification and fault detection. With built-in Optical Power Meter (OPM), Optical Light Source (OLS), Visual Fault Locator (VFL), Fiber Microscope (FM), and Event Fault Detection (EFD), this OTDR is ideal for testing and maintaining fiber networks. It features a 7'' Touch Screen, SC/PC, FC/PC, ST/PC connectors, and a 4400mAh lithium battery, supporting 12-hour continuous testing for efficient fieldwork in various environments.

Key Features:

• Triple Wavelength OTDR: 1310nm (45dB), 1550nm (43dB), 1625nm (43dB)
• Multi-Functional Tester: Integrated OPM, OLS, VFL, FM, and EFD
• High Dynamic Range: Up to 240km (Singlemode) & 40km (Multimode)
• 7'' Touchscreen Display: Easy navigation with graphical event analysis
• Versatile Connector Compatibility: Supports SC/PC, FC/PC, and ST/PC
• Long Battery Life: 4400mAh lithium battery with 12 hours operation
• Advanced Optical Algorithms: For precise fiber link identification
• Pass/Fail Analysis & Event Display: Ensuring accurate troubleshooting

Its Uses:

• Fiber optic network installation, maintenance, and troubleshooting
• Passive Optical Network (PON) fault detection and performance assessment
• Short and long-distance optical link analysis (up to 240km)
• Optical power measurement, loss testing, and fiber rectification
• Industrial and telecom fiber network quality assurance
