Fibershot Pro-D45 OTDR Test Wavelength 1310nm:45dB/1550nm:43dB Single Mode OTDR Tester Built-in OPM+LS+VFL+FM+PM Module+7inch TFT Touch Screen, Connector with SC/PC, FC/PC, ST/PC

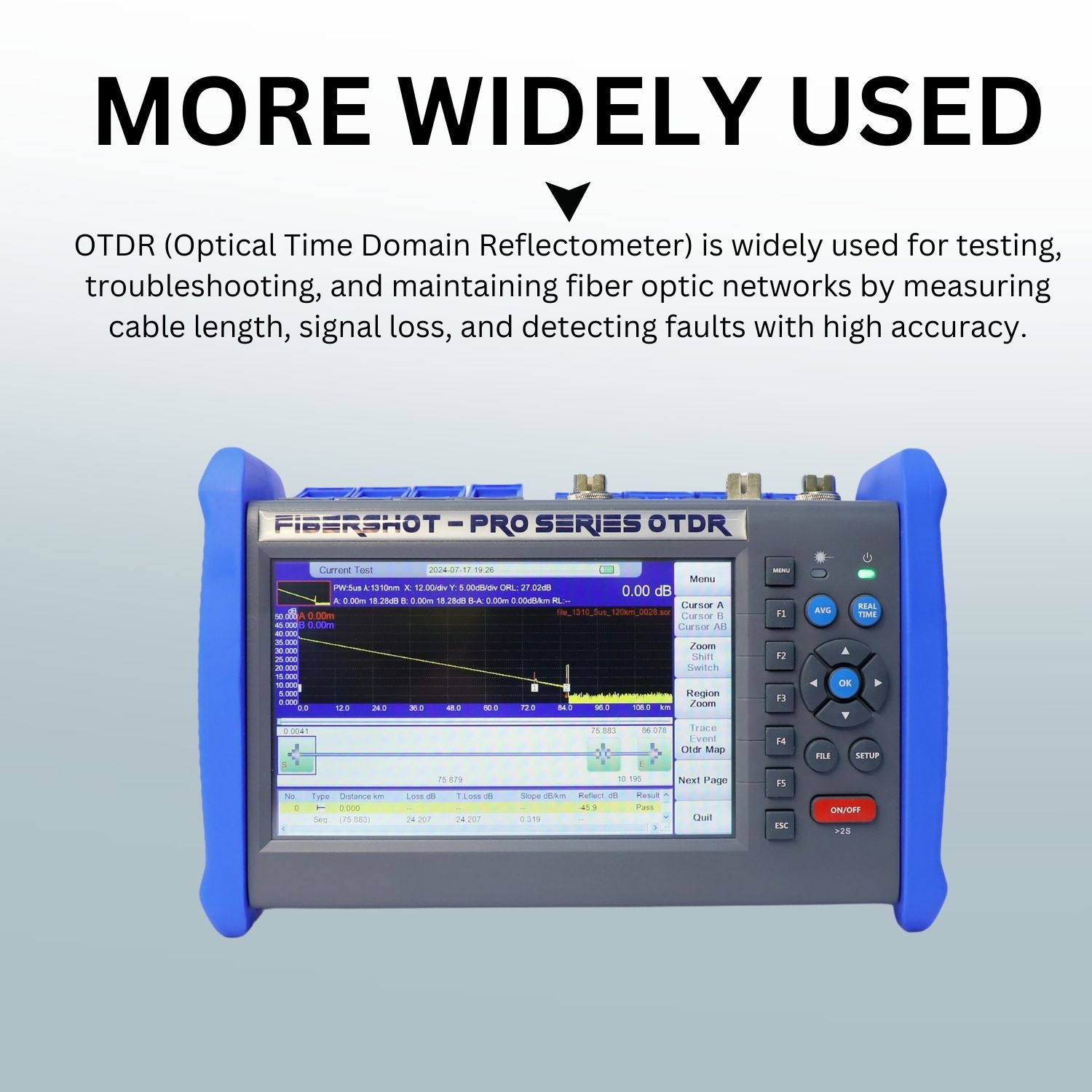

The Fibershot Pro-D45 OTDR is a high-performance Optical Time Domain Reflectometer designed for precise fiber optic network testing. With a dynamic range of 45dB (1310nm) and 43dB (1550nm), it ensures accurate fiber link identification and troubleshooting. The device features a 7-inch TFT touchscreen, built-in Optical Power Meter (OPM), Light Source (LS), Visual Fault Locator (VFL), Fiber Microscope (FM), and Power Meter (PM).** It supports multiple connectors including SC/PC, FC/PC, and ST/PC. Ideal for optical line rectification, power measurement, and fiber diagnostics, the Fibershot Pro-D45 OTDR is compact, reliable, and engineered for professional telecom applications.

Key Features:

• OTDR Measurement with 1310nm/1550nm wavelengths, 45/43dB dynamic range
• Test distance: 100m to 240km
• Built-in OPM, VFL, LS, FM, PM for complete fiber diagnostics
• Graphical event map for fiber length, event loss, and breakpoint locations
• RJ45 TDR Cable Tester for network cable diagnostics
• Multiple test modes with advanced optical algorithms
• 7-inch TFT Touchscreen for a user-friendly interface
• Supports SC/PC, FC/PC, and ST/PC connectors

Its Uses:

• Fiber Link Testing & Troubleshooting
• Optical Network Maintenance & Rectification
• Accurate Power Measurement & Event Analysis
• UTP & Network Cable Fault Detection
• Efficient Fiber Diagnostics for Telecom & Data Centers
