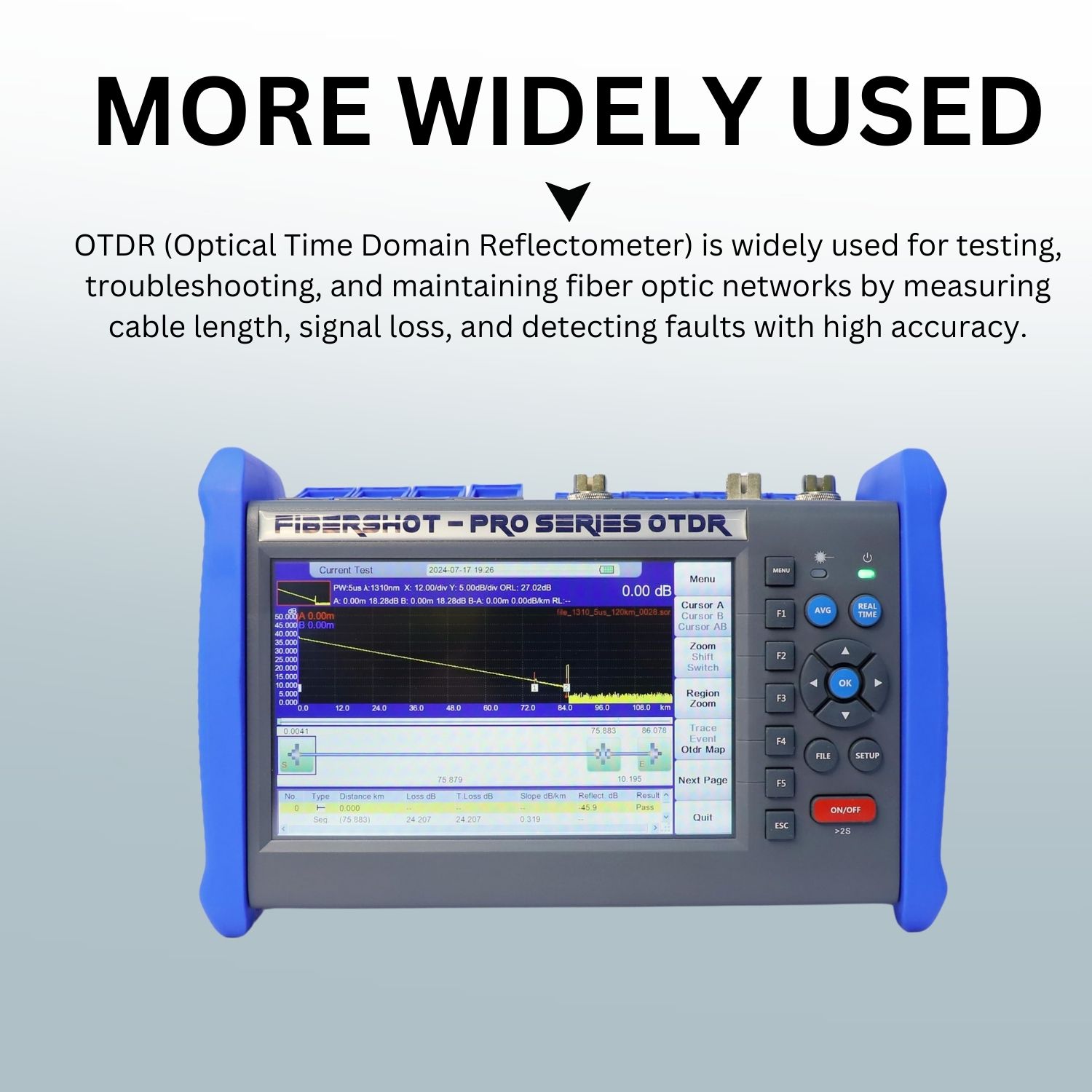

Fibershot Pro-D35 OTDR – 1310nm:35dB / 1550nm:33dB SingleMode Fiber OTDR Tester with Built-in OPM+LS+VFL+FM+PM Module & 7-inch TFT Touch Screen

The Fibershot Pro-D35 OTDR is a high-performance Optical Time Domain Reflectometer designed for precise fiber optic testing. With test wavelengths of 1310nm (35dB) and 1550nm (33dB), it ensures accurate measurements over long distances. The device features a built-in Optical Power Meter (OPM), Light Source (LS), Visual Fault Locator (VFL), Fiber Microscope (FM), and Power Meter (PM) for comprehensive fiber diagnostics. Its 7-inch TFT touch screen offers user-friendly navigation, while the large 7400mAh battery supports extended field operations. Equipped with SC/PC, FC/PC, and ST/PC connectors, the Pro-D35 OTDR is ideal for fiber link testing, maintenance, and troubleshooting.

Key Features:

• High-Precision OTDR: 1310nm (35dB) & 1550nm (33dB) dynamic range.
• Built-in Test Modules: OPM, LS, VFL, FM, and PM for complete fiber diagnostics.
• User-Friendly Interface: 7-inch TFT touch screen for easy navigation.
• Extended Battery Life: 7400mAh lithium battery with up to 12 hours of continuous testing.
• Graphical Event Map: Displays fiber length, event loss, joint types, and breakpoints.
• Multiple Test Modes: Adjustable pass/fail parameters and advanced OTDR algorithms.
• Durable Design: Compact, rugged build for field use with LED flashlight for night operations.

Its Uses:

• Fiber Optic Network Installation & Maintenance
• Accurate Fiber Link Diagnostics & Troubleshooting
• Optical Power Measurement & Line Rectification
• UTP Cable Testing & Breakpoint Identification
• Telecom & Data Center Fiber Network Testing
