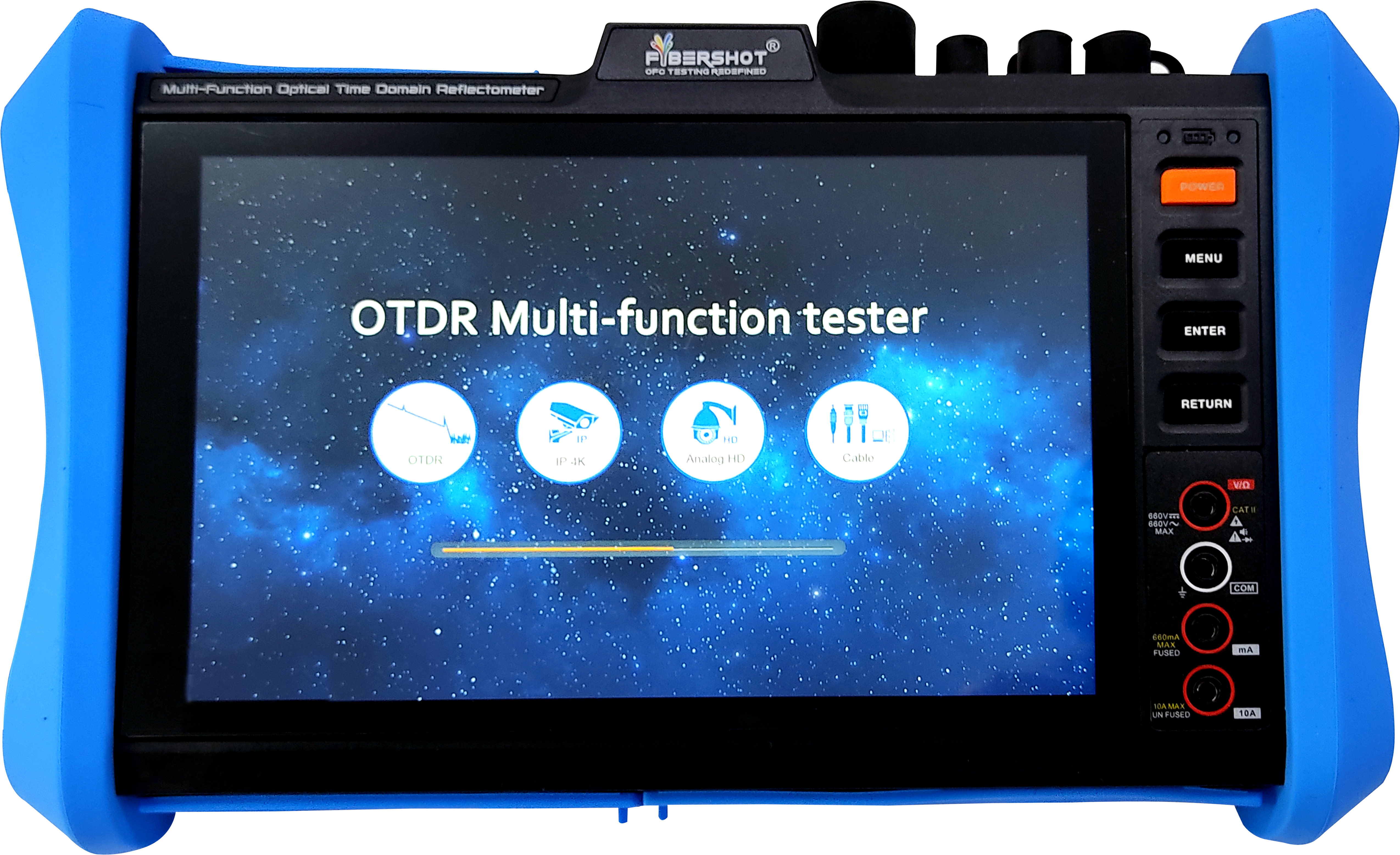

FIBERSHOT Multi-Function C8 Pro OTDR Tester | Fiber Optic, Copper Cable (LTDR) & CCTV Network Analyzer with RJ45 TDR, Dual GbE & SFP | HDMI/VGA in | PoE++ Test | Android, DMM, PDF/EXCEL Reports

One body. All the tests.
The STAR C-8 is a technician’s primary meter when a site mixes fiber, IP cameras, and copper Ethernet. Run a full 1310/1550 nm OTDR with automatic event analysis, cross-check with the integrated OPM/VFL/LS, then pivot to IP camera diagnostics, PoE++ checks, and RJ45 TDR without swapping tools. An 8″ 1920×1200 IPS screen and Android UI keep traces, camera streams, and network apps just a tap away. Reports export in SOR/PDF/EXCEL, so handover is plug-and-play for your client.

Designed for real field work

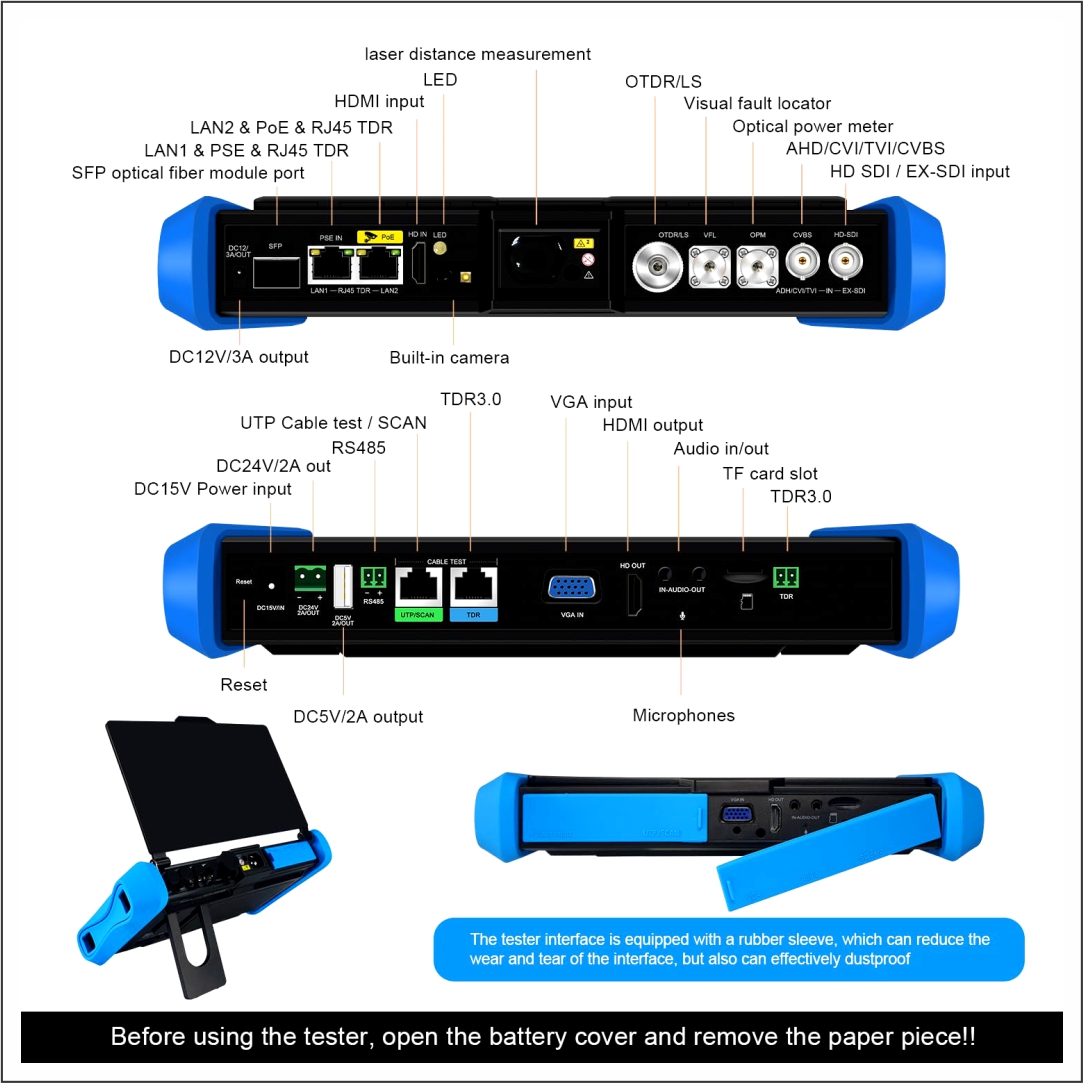

Dual Gigabit LAN and an SFP port slot into fiber networks cleanly. Wi-Fi, ping/IP scan/PPPoE, and port flashing help locate misconfigurations fast. HDMI/VGA inputs and ONVIF/Chrome support let you view and configure cameras on the spot. With the built-in DMM and 12 V/5 V outputs, the C-8 replaces a bag of gear and frees a hand on the ladder.

Key Features

1. True multi-tool for fiber + CCTV + networking: Full OTDR with automatic event map, integrated optical power meter, VFL, and adjustable laser source—plus IP/HD-coax camera testing and network diagnostics in one handheld.
2. Clean traces, faster decisions: 1310/1550 nm OTDR module with up to 35/34 dB dynamic range, ≤1.6 m event blind zone, ≤8 m attenuation blind zone, and 5–20000 ns pulse widths for short drops to long-haul.

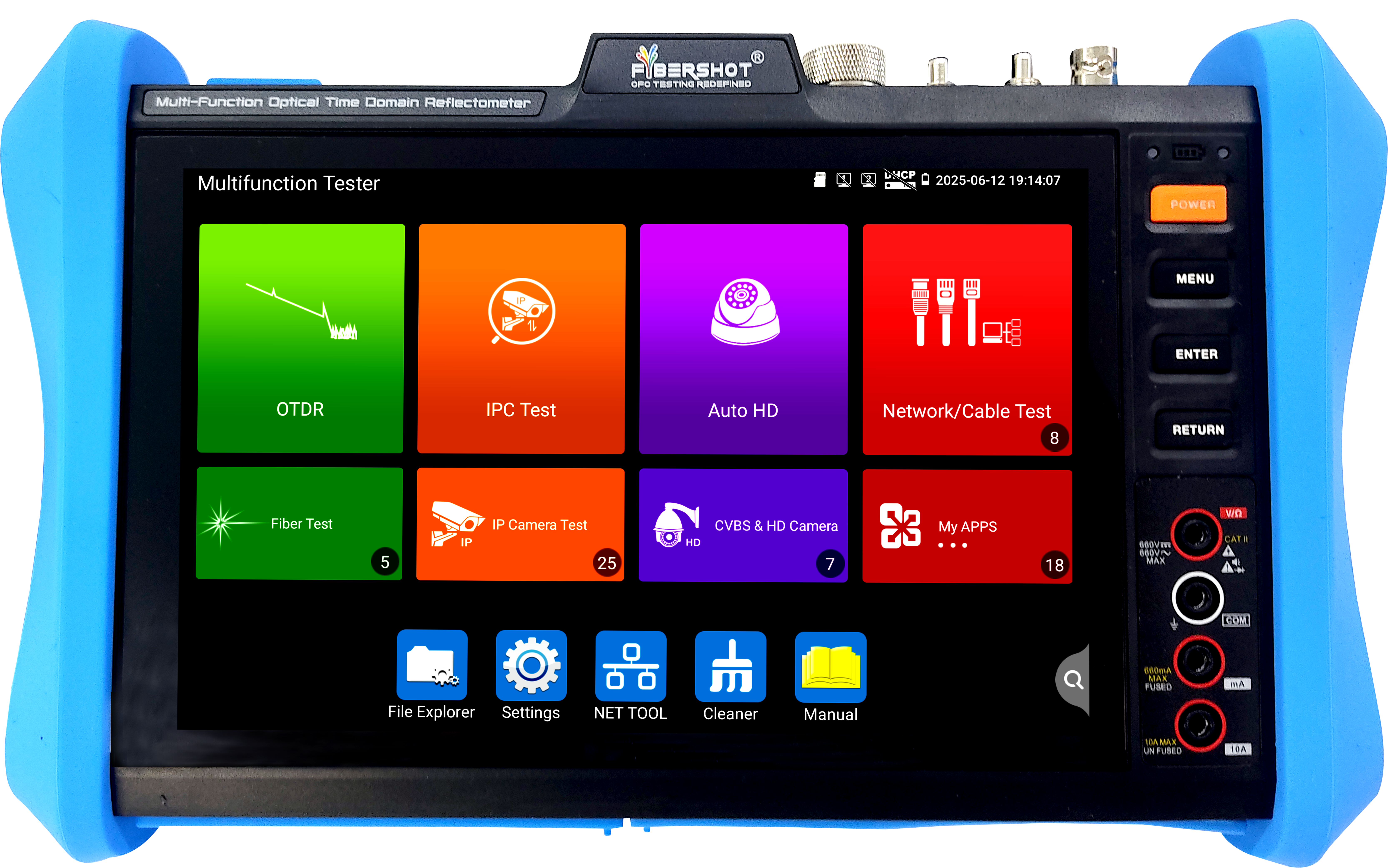

3. 8″ daylight-friendly screen: High-resolution 1920×1200 IPS touchscreen makes traces, events, and ONVIF/HD streams easy to read on site.
4. Reports that customers accept: Save SOR, PDF, and EXCEL; compare up to four traces; auto-analyze events and generate pass/fail views for connectors, fusions, and total link loss.
5. Network & copper toolkit built-in: Dual 1000 M LAN, SFP slot, Wi-Fi test, ping/IP scan/PPPoE/port flash, UTP test, and RJ45 TDR length/fault analysis.
6. Camera testing that saves truck rolls: H.265 IP camera view, 8 MP TVI/CVI/AHD tests, HDMI/VGA input, Chrome access to camera web UIs, and PoE++ power test/output.
7. DMM on the meter: Measure voltage, current, and resistance without reaching for a second instrument.
8. All-day power, field-ready: 7.4 V 7800 mAh battery, ~11 hours typical operation; 12 V DC and 5 V USB outputs for powering devices.
