Cable & Pipe Locator Model: AG-309 – High-Precision Utility Location System (Telogica)

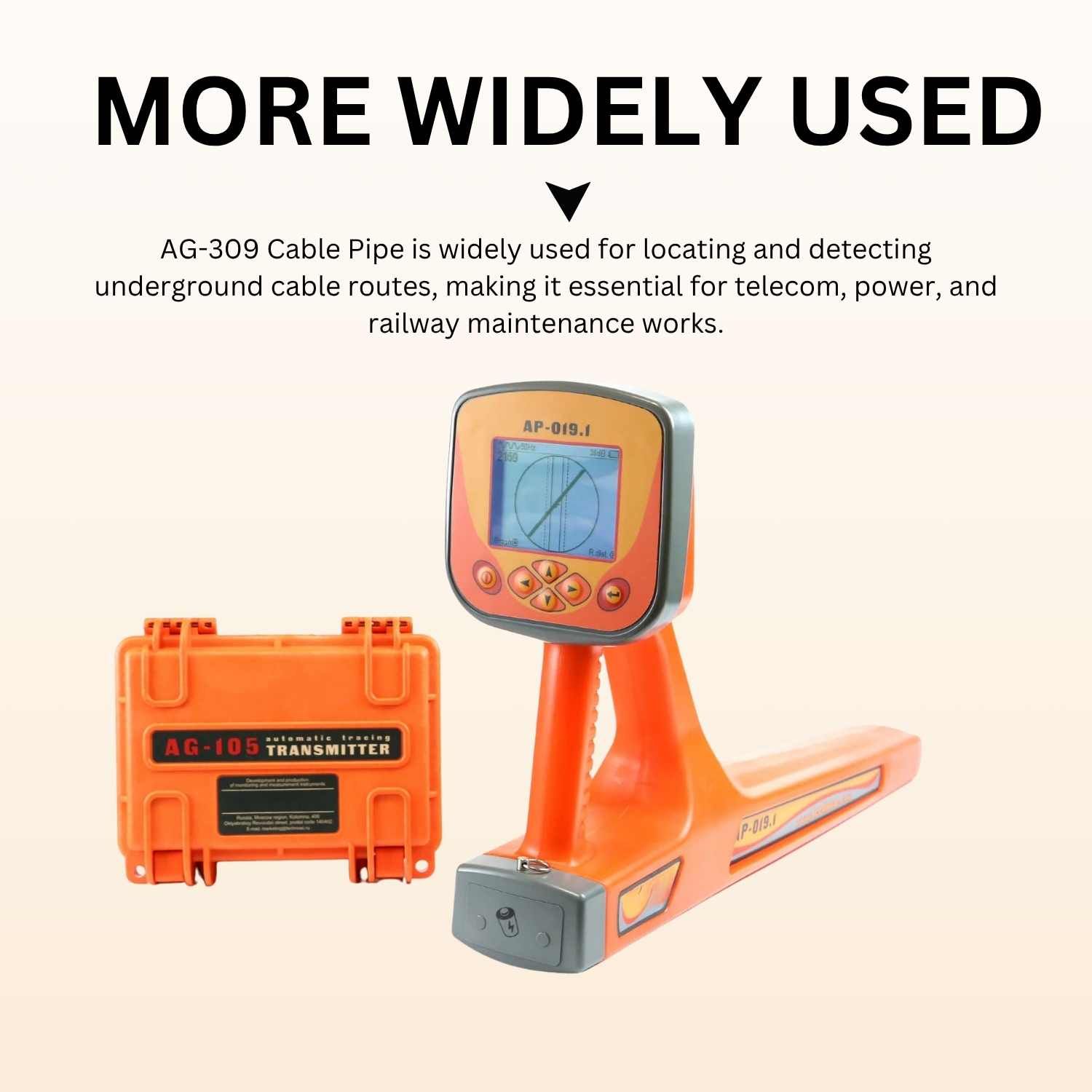

The AG-309 is a high-precision cable and pipe locator designed to detect underground utilities with superior accuracy. Featuring a large LCD interface, this advanced locator provides real-time feedback on depth, direction, and signal strength. With multiple modes including ROUTE, GRAPHIC, and THIRD-ROUTE, it ensures exact identification and tracing of both conductive and non-conductive cables. Operated via simple push buttons, it includes a 29W transmitter for double the power of standard models. Ideal for telecom, power, gas, and water utility projects, the AG-309 is a professional tool trusted for fast, reliable, and accurate underground cable and pipe location.

Key Features:

• Sensitivity: 100μA
• Accurate digital display of cable current (up to 300mA)
• Direct frequency measurement of the current
• Frequencies: 512/1024/8192/32768 Hz
• Accepts both conductive and non-conductive lines with optional grounding and pipe saddle
• Modes of operation: ROUTE, GRAPHIC, THIRD-ROUTE
• Precise deviation indication from utility line in ROUTE mode
• Dual power: Equipped with a 29W transmitter – 2× more powerful than standard tools
• Easy push-button operation with large LCD display

Its Uses:

• Locating underground electrical cables
• Detecting and tracing buried telecom cables
• Utility mapping for water, gas, and power lines
• Field-level fault isolation
• Civil infrastructure projects
